Ultra Spec Cables

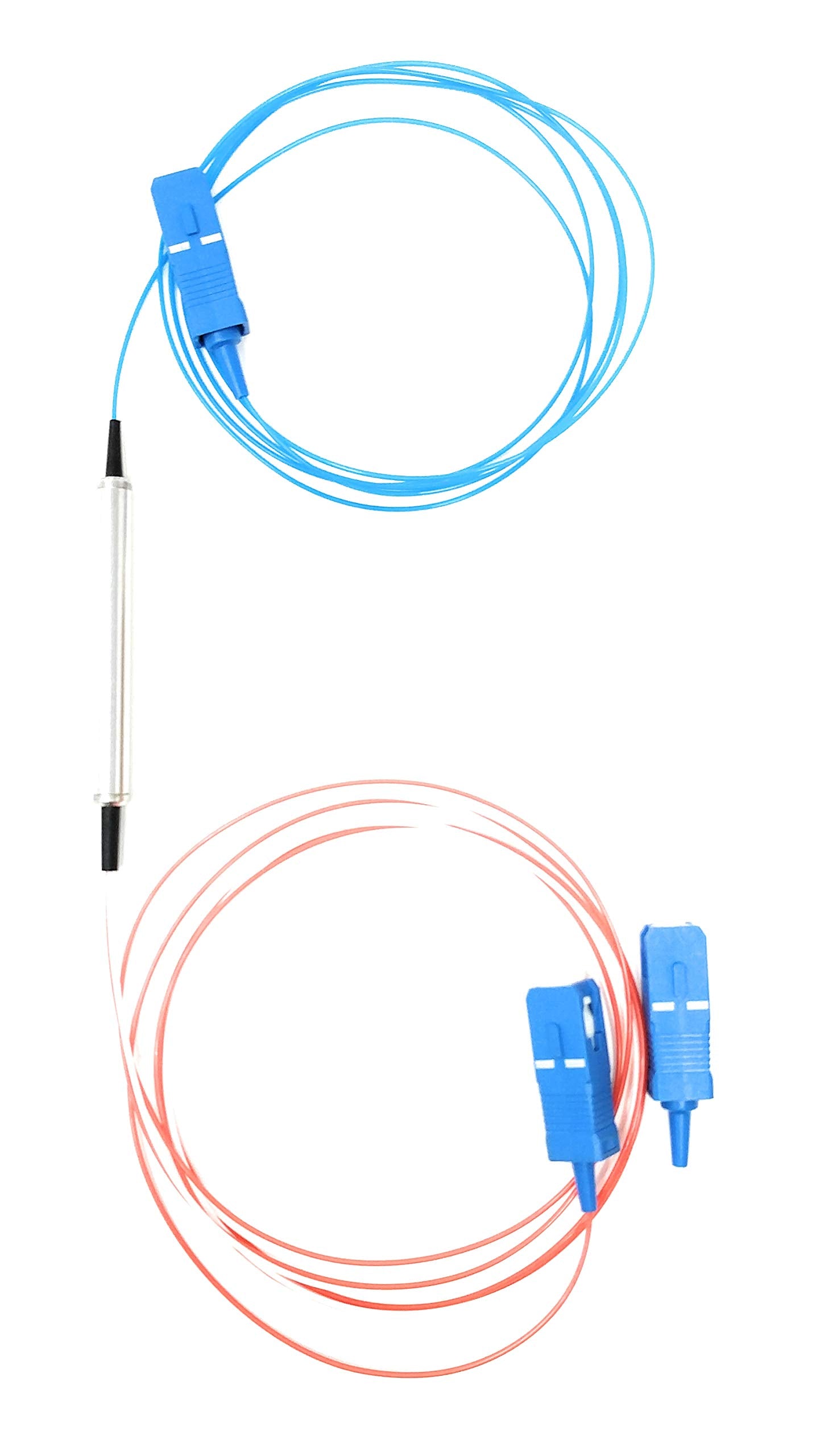

Ultra Spec Cables 1625nm WDM 3 Port Optical Circulator Cable, 900um Loose Tube, SC/UPC - 1 Meter
Ultra Spec Cables 1625nm WDM 3 Port Optical Circulator Cable, 900um Loose Tube, SC/UPC - 1 Meter
Ultra Spec Cables 1625nm WDM 3 Port Optical Circulator Cable is designed to redirect light from port to port in sequence and only in one order, since they are non-reciprocal. The 3 Port SC/UPC WDM Cable routes signals traveling in opposite directions over the fiber from one port to the next, so bi-directional transmission can be achieved over a single fiber. By installing one at each end of your 2 Fiber TX/RX Network, you are able to free up one fiber by utilizing bi-direction network traffic over a singular fiber. Its constructed to provide high isolation between the varying wavelengths with minimal excess loss. The 900um jackets protect the inner fiber and the dust caps shield the end faces from contaminants that potentially damage the fiber connectors. The exceptional channel to channel uniformity, accuracy and stability also make it perfect for use in Communications, Sensor Applications and WDM Systems where fiber relief is needed. Our WDM Cables include a detailed Test Report and are available with a variety of different connectors, wavelength combinations and applications.
